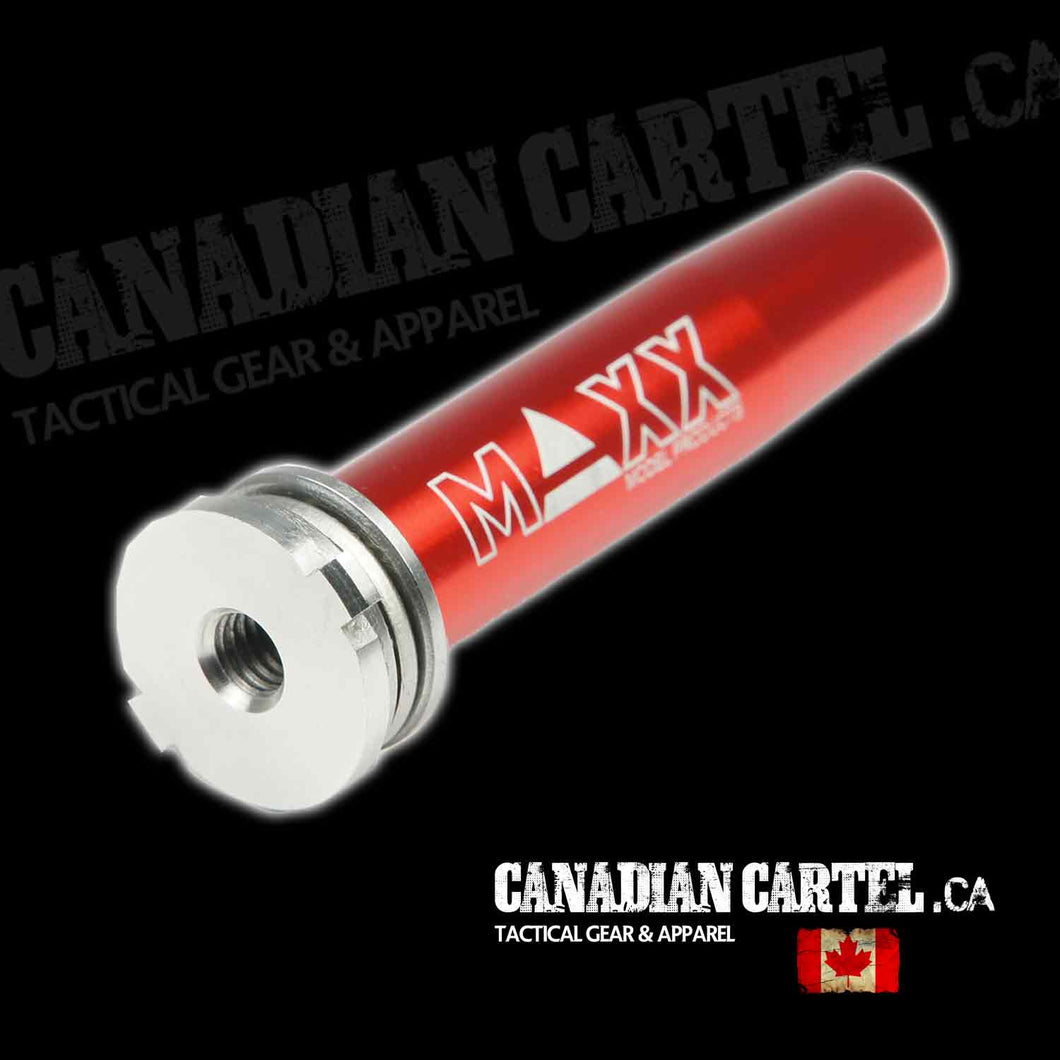

CNC Stainless Steel/Aluminum Spring Guide

CNC Stainless Steel/Aluminum Spring Guide

Regular price
$19.95
Sale price
$19.95
Shipping calculated at checkout.

Product Description



CNC Stainless Steel/Aluminum Spring Guides are designed to keep the spring in line and allow the spring to rotate on shaft during high compression, suitable for AEG version 2 gear box upgrades.
This Spring Guide is machined with an M5 thread on stainless steel hub to hold the stock securely and equipped thrust ball bearing to reduce spring stress and breakage during high speed spring compression. Made of Stainless Steel and Aluminum.



  Includes
1 x CNC Stainless Steel/Aluminum Spring Guide



  Specification
Hub Internal Thread: M5x0.80
Hub Outer Diameter: 16mm
Shaft Outer Diameter: 10.8mm
Shaft Length: 44.5mm
Overall Length: 51.5mm
Material: Stainless Steel and Aluminum



  Features
Stainless Steel and Aluminum construction
Machined M5 thread on stainless steel hub
Equipped thrust ball bearing to reduce spring stress and breakage
Aligned spring in line and rotate on shaft during high compression
Strong stainless steel hub chamfer shoulder designs



  Weight
14 grams



  Usage
Used for AEG version 2 gear box upgrades (M4, M16, MP5,...)



  Requires
Wearing eye protection is recommended
Use proper tools for disassembly and reassembly the spring guide with great care due to spring tension
Bearing lubricant oil/grease is recommended for smooth operation



  Instruction
Instruction Manuals are included

Language
English
